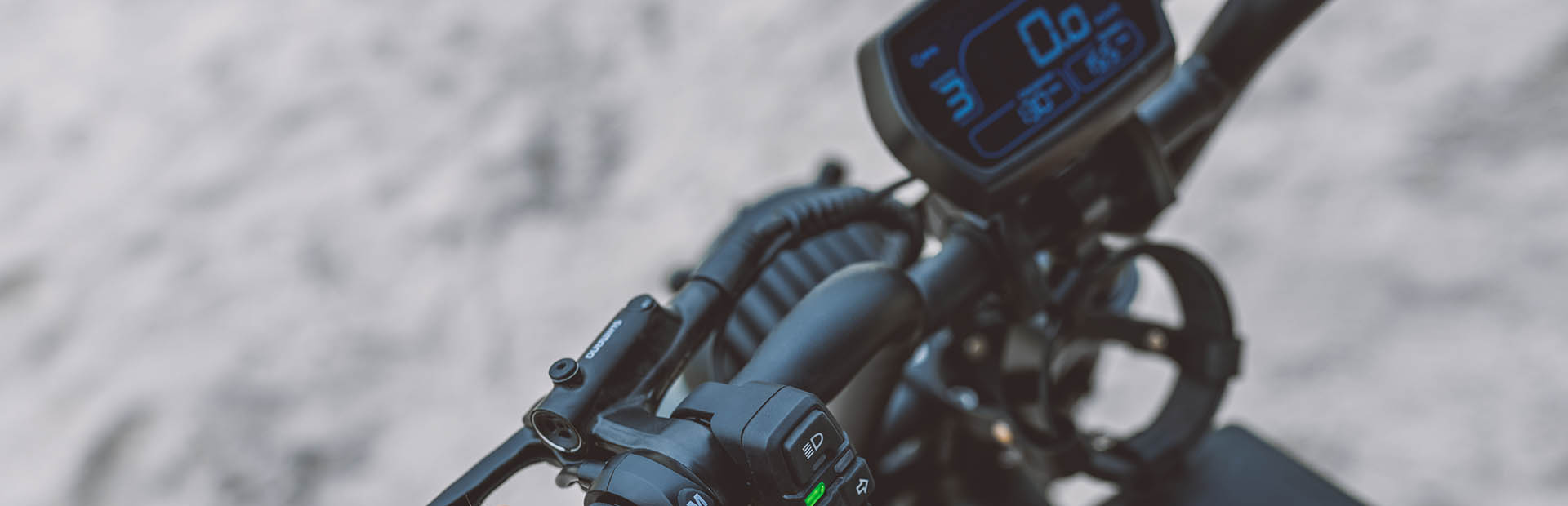

CC05-The ultimate choice for your e-bike display screen

CC05 is a powerful and stylish display screen with features such as personalized color variation, Type-C charging, wide horizontal screen, intelligent auto-dimming, and reliable waterproof performance.

Dynamic Appearance Dynamic Appearance

Type-C Charging Type-C Charging

TruckRun IoT Support TruckRun IoT Support

Wide Horizontal Screen Wide Horizontal Screen

Intelligent Auto-Dimming Intelligent Auto-Dimming

Reliable Waterproof Reliable Waterproof

The Ultimate Choice

Stunning Dynamic Appearance

Stunning Dynamic Appearance

The CC05 display screen is renowned for its stunning dynamic appearance. It can change the screen color based on different modes to match the current state or user preferences. This functionality adds a personalized touch to the CC05 display screen, making it eye-catching and leaving a lasting impression.

Stunning Dynamic Appearance

Convenient Type-C Charging

Convenient Type-C Charging

The CC05 display screen supports Type-C charging interface, allowing users to conveniently power it through the Type-C port. Moreover, with the fast charging capabilities of Type-C, users can quickly charge the display screen. This provides a convenient charging option, eliminating the need for additional charging devices or cables.

Convenient Type-C Charging

TRUCKRUN IoT Support

TRUCKRUN IoT Support

The CC05 display screen is compatible with TruckRun's Internet of Things (IoT) solution, providing advanced features and personalized settings. Commuting riders can connect to TruckRun IoT for remote control functionalities, such as remotely switching the electric bike on/off and anti-theft functions, ensuring the security of their vehicle. For road and gravel cyclists, they can adjust power parameters based on personal preferences and riding needs, achieving a more personalized riding experience.

TRUCKRUN IoT Support

Wide Horizontal Screen Display

Wide Horizontal Screen Display

The CC05 display screen features a 3.5-inch horizontal screen, offering a wide display area. Users can enjoy a broader field of view and an enhanced visual experience. In horizontal screen mode, whether it's watching videos, playing games, or browsing the web, the CC05 display screen provides a clear and immersive experience.

Wide Horizontal Screen Display

Intelligent Auto-Dimming

Intelligent Auto-Dimming

The CC05 display screen is equipped with an intelligent auto-dimming feature. Even in low-light environments, it automatically adjusts the brightness to ensure clear visibility of the screen's contents. Users can easily read the screen without the need for additional lighting devices, enjoying a high-quality display experience.

Intelligent Auto-Dimming

Reliable Waterproof Performance

Reliable Waterproof Performance

The CC05 display screen boasts an impressive IPX7 waterproof rating. Whether used in outdoor activities or in wet environments, it effectively protects against water droplets, rain, or other liquids from damaging the screen. This reliable waterproof performance makes the CC05 display screen durable, allowing users to confidently use it in various conditions.

Reliable Waterproof Performance

walk-assist

walk-assist

CC05 features a walk-assist function, providing additional assistance when pushing the bike. Cyclists can easily activate the walk-assist function through the display screen, making it easier to maneuver the bike, such as during uphill climbs, walking areas, or while parking.

walk-assist

ROHS

ROHS

EMC

EMC

SGS

SGS

EMC CE

EMC CE

UL-Certificate

UL-Certificate

UL-Test

UL-Test

EN15194

EN15194

CCC

CCC

Quality Management System

Quality Management System

Product parameters

  CC03 CC05 E03 CC01 CB01 CB03 CA01 CD901 CT602/XCT602 CS1201A/XCS1201A CS901A/XCS901A CS601A/XCS601A
Protocol UART/CAN UART UART/CAN UART UART UART/CAN UART/CAN
Rated voltage(Vdc) 36/48/60 36/48 36/48/60 36/48/60 24/36/48 36/48/60 24V/36V/48V
Display Type TFT color matrix TFT color matrix LED TFT color matrix LCD dot matrix screen Segment code LCD Segment code LCD
Support Modes 0-3/0-5/0-9 0-3/0-5/0-9 0-3/0-5/0-9 0-3/0-5/0-9 0-3/0-5 0-3/0-5/0-9 0-3/0-5/0-9
Mounting dimension φ22.2/φ25.4/φ31.8 φ22.2/φ25.4/φ31.8/φ35.0 φ22.2 φ22.2/φ25.4/φ31.8 Φ22.2/25.4/31.8mm φ22.2/φ25.4/φ31.8 φ22.2/φ25.4/φ31.8
TruckRun IoT Solution YES YES YES - - YES -
OTA YES YES YES - - YES -
Bluetooth YES YES YES - YES YES -
Light Sensor YES YES YES YES YES YES -
USB Charge YES YES - YES YES YES -
Real-time speed YES YES YES YES YES YES YES
Maximum speed YES YES - YES YES YES -
Average speed YES YES - YES YES YES -
Single mileage YES YES - YES YES YES YES
Total mileage YES YES - YES YES YES YES
Remaining mileage YES YES - - YES YES -
Battery power display YES YES YES YES YES YES YES
Error code YES YES YES YES YES YES YES
Power display YES YES - YES YES YES YES
Real-time current YES YES - YES YES YES -
Metric /Imperial YES YES YES YES YES YES YES
Walk-Assit function YES YES YES YES YES YES YES
Noise (dB) <55 <55 <55 <60 <55 <55 <55
IP Level IPX5 IPX7 IPX5 IPX5 IPX6 IPX5 IPX5
Operating Temperature (℃) -20~55 -20~55 -20~55 -20~55 -20~55 -20~55 -20~55
