Freedom of Expression in Personalized Riding

Designed to offer an intuitive, user-friendly, and personalized control experience, TruckRun's displays and control units enable riders to effortlessly manage and adjust the performance and functionality of their electric bicycles. With these devices, riders can have better control and optimization of their riding experience, catering to their individual needs and preferences. TruckRun's Smart Riding Solution, combined with displays and control units, brings additional features and convenience to riders. Whether it's personalized settings, anti-theft features, or remote control capabilities, the integration of these functionalities makes TruckRun's e-bike system smarter, innovative, and user-friendly.

Load more

What can we do with Display & Control unit of TRUCKRUN?

Innovative and customizable design

Innovative and customizable design

Innovative and customizable design

TruckRun's display screens and controllers feature innovative designs and offer a wide range of customization options to meet the needs of different electric bike manufacturers and riders. Whether it's the compact and minimalist CB03 or the colorful and dynamic CC05, each product showcases TruckRun's excellent capabilities in design innovation.

Advanced features and smart connectivity

Advanced features and smart connectivity

Advanced features and smart connectivity

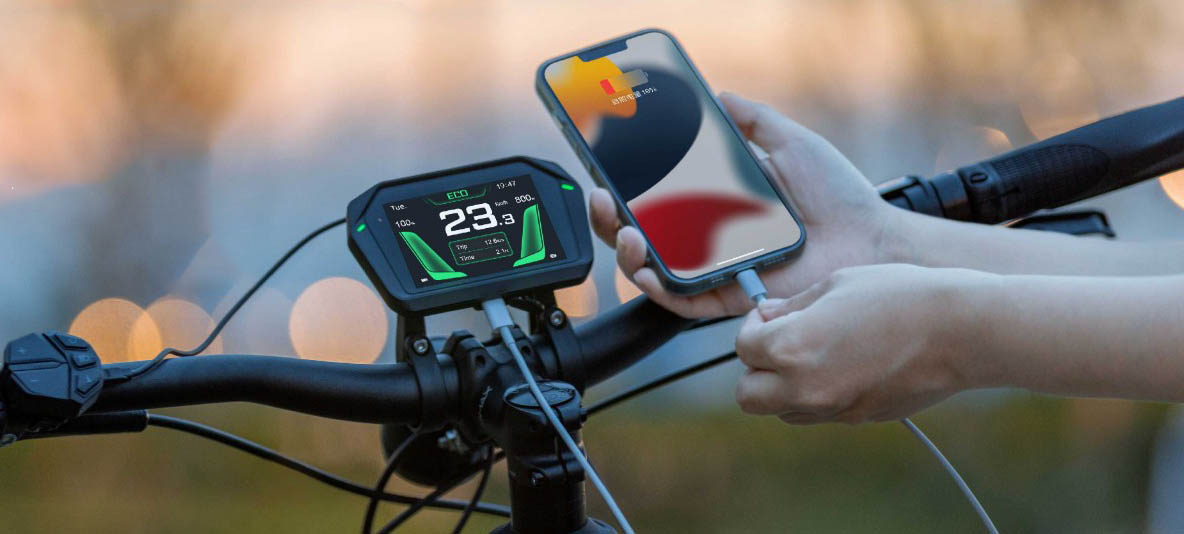

TruckRun's display screens and controllers support advanced feature integration, including Bluetooth, IoT (Internet of Things), and more. By connecting with the TRUCKRUN mobile application, riders can track real-time riding data, navigate routes, and enjoy remote control and intelligent riding experiences.

Durability and reliability

Durability and reliability

Durability and reliability

TruckRun's display screens and controllers are meticulously designed to provide outstanding durability and reliability. They are equipped with protection measures such as waterproofing and dust resistance, allowing them to operate smoothly in various challenging conditions. This reliability makes TruckRun's display screens and controllers the preferred choice for electric bike manufacturers and riders.

Diverse product line to match different consumer and riding needs

Diverse product line to match different consumer and riding needs

Diverse product line to match different consumer and riding needs

TruckRun offers a diverse product line that caters to a wide range of consumer preferences and riding requirements. Whether it's urban commuting, road cycling, or adventurous riding, TruckRun's display screens and controllers provide suitable solutions. From the practical and straightforward CB03 to the advanced features and smart connectivity of CC05, TruckRun's product line offers competitive options for consumers in terms of cost considerations and style preferences.

Technical Data

  CC03 CC05 E03 CC01 CB01 CB03 CA01
Protocol UART/CAN UART UART/CAN UART UART UART/CAN UART/CAN
Rated voltage(Vdc) 36/48/60 36/48 36/48/60 36/48/60 24/36/48 36/48/60 24V/36V/48V
Display Type TFT color matrix TFT color matrix LED TFT color matrix LCD dot matrix screen Segment code LCD Segment code LCD
Support Modes 0-3/0-5/0-9 0-3/0-5/0-9 0-3/0-5/0-9 0-3/0-5/0-9 0-3/0-5 0-3/0-5/0-9 0-3/0-5/0-9
Mounting dimension φ22.2/φ25.4/φ31.8 φ22.2/φ25.4/φ31.8/φ35.0 φ22.2 φ22.2/φ25.4/φ31.8 Φ22.2/25.4/31.8mm φ22.2/φ25.4/φ31.8 φ22.2/φ25.4/φ31.8
TruckRun IoT Solution YES YES YES - - YES -
OTA YES YES YES - - YES -
Bluetooth YES YES YES - YES YES -
Light Sensor YES YES YES YES YES YES -
USB Charge YES YES - YES YES YES -
Real-time speed YES YES YES YES YES YES YES
Maximum speed YES YES - YES YES YES -
Average speed YES YES - YES YES YES -
Single mileage YES YES - YES YES YES YES
Total mileage YES YES - YES YES YES YES
Remaining mileage YES YES - - YES YES -
Battery power display YES YES YES YES YES YES YES
Error code YES YES YES YES YES YES YES
Power display YES YES - YES YES YES YES
Real-time current YES YES - YES YES YES -
Metric /Imperial YES YES YES YES YES YES YES
Walk-Assit function YES YES YES YES YES YES YES
Noise (dB) <55 <55 <55 <60 <55 <55 <55
IP Level IPX5 IPX7 IPX5 IPX5 IPX6 IPX5 IPX5
Operating Temperature (℃) -20~55 -20~55 -20~55 -20~55 -20~55 -20~55 -20~55
