TruckRun Hub Motor System, effortlessly embarking on an eBike journey.

To cater to different bike types and terrains, TruckRun has designed nearly a hundred models of hub motors, making it easy and cost-effective to upgrade your bicycle to an eBike. Additionally, TruckRun's Human-Vehicle Collaboration solution enables almost all of their hub motors to support the Cassette torque feature. This component, known as the Hub motor sensor, offers simple installation and convenient maintenance while accurately sensing the rider's intentions. It ensures the motor delivers optimal power, extends battery life, and provides a natural and comfortable riding experience.

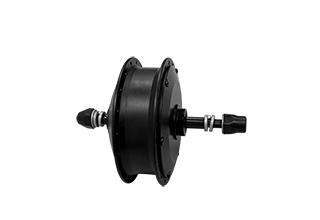

RW06-20Z

RW06-20Z

Rated power (W): 350/500

350

500

Maximum torque(N.m): 55

55

Weight (kg): 4.6

4.6

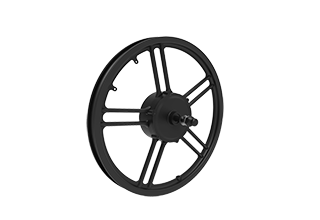

RW11-20Z

RW11-20Z

Rated Power (W): 500/750

500

750

Max Torque(N.m): 80

80

Weight (kg): 5.3/5.6

5.3

5.6

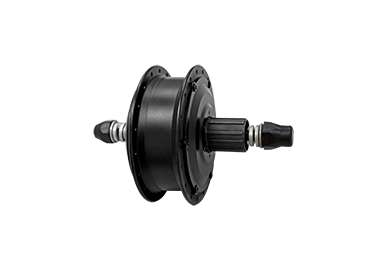

RW06

RW06

Rated Power (W):350/500

350

500

Max Torque(N.m):55

55

Weight (kg): 3.4

3.4

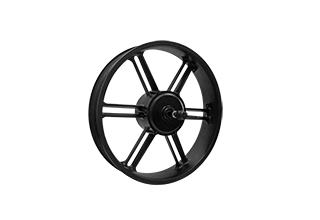

RW01-L

RW01-L

Rated Power (W): 250

250

Max Torque(N.m): 42

42

Weight (kg): 2.6

2.6

Load more

Why to choose TRUCKRUN Hub Motor?

High Efficiency

High Efficiency

High Efficiency

TruckRun hub motors utilize advanced technology to efficiently convert electrical energy into power output, delivering excellent acceleration performance and extended range. Most TruckRun hub motors achieve an efficiency of over 79%.

Silent Operation

Silent Operation

Silent Operation

Carefully designed and manufactured, TruckRun hub motors typically operate at low noise levels. This allows riders to enjoy a quiet and comfortable experience during their journeys. The noise level of most motors is below 55 dB, with high-power motors also capable of staying below 60 dB.

Smooth Power Output

Smooth Power Output

Smooth Power Output

TruckRun hub motors are designed to provide a smooth and stable power output, without noticeable fluctuations or abrupt changes. The installation of torque sensors further enhances this characteristic, enabling precise assistance. Riders can enjoy enhanced power delivery, improved riding comfort, and easy installation and maintenance. Approximately 95% of TruckRun hub motors are compatible with torque sensors.

Waterproof Performance

Waterproof Performance

Waterproof Performance

TruckRun hub motors generally have excellent waterproof capabilities, enabling them to operate reliably in wet conditions. This makes electric vehicles suitable for use in various weather conditions.

Dual-drive solution

Dual-drive solution

Dual-drive solution

Addressing high-power requirements, TruckRun also offers a mature dual-drive solution, which enables even stronger power output and provides enhanced stability for the vehicle body.

Automatic transmission

Automatic transmission

Automatic transmission

The automatic transmission feature of TruckRun hub motors not only enables higher speeds but also offers the advantage of a compact design. With its built-in gearing system, there is no need for external transmission components, making TruckRun hub motors sleeker in design and reducing the need for additional maintenance and adjustments. This compact design provides a more convenient installation and user experience while minimizing potential points of failure. Riders can focus more on enjoying their ride without worrying too much about maintaining and adjusting the motor's transmission components. The compact design of TruckRun hub motors brings riders the dual benefits of convenience and reliability.

Specs

  FN01-A RN02 RN01 RN04 RW29 RW11 RW28 RW26
Dimension diagram

Install Location FRONT Rear Rear Rear Rear Rear Rear Rear
Integrated wheel optional - - - - Optional - -
A (mm) 42.5 40 45.5 36.6 65 68 65 46.3
B (mm) φ102.2 φ121.7 φ104.5 φ125.5 φ191.2 φ158.5 φ191.2 φ192.4
C (mm) φ44 φ44 φ33 φ60 φ44 φ44 φ44 φ44
D (mm) 10.5 15.25 15.25 15.25 15.25 15.25 15.25 15.25
E (mm) 2.5 19.6 42.4 43.7 39.5 39.5 39.5 38.5
OLD (mm) 100 100/130/142 145 135/142 135/175/185/190 135/175/185/190 135/175/185/190 148
Wheel diameter (Inch) 20-29 20-29 20-29 20-29 20-29 20-29 20-29 20-29
Installation mode Front Drive All Fit Cassette Front Drive/Cassette Cassette/Thread on Cassette/Thread on ALL FIT Screwed
Spoke size 28H*13G(12G) 36H*13G(12G) 36H*13G(12G) 28H*13G(12G) 36H*13G(12G) 36H*13G(12G) 12G-13G/36H 12G-13G/36H
Cabling Route Shaft Side Shaft Side/Shaft End Shaft Side Barrel shaft/Shaft Side Shaft Side Shaft End Shaft Side Shaft Side
Rated voltage(Vdc) 36 36 36 36 48 48 48 36/48
Rated power (W) 250 250 250 250 1000/1200/1500 350/500/750 750 500/750
Rated speed(Rpm) 225-325 225-365 255-285 325-380 320-680 240-480 345-520 200-380
Maximum torque(N.m) 32 38 33 32 90 80 70 65
Weight (kg) 1.8 2.1 1.9 2.1 5.6 3.8 4.2 3.9
Efficiency (%) ≥80 ≥80 ≥80 ≥80 ≥80 ≥80 ≥80 ≥80
Integrated Torque - - - Optional Optional Optional Optional Optional
Power off brake Optional Optional Optional Optional Optional Optional Optional Optional
Handlebar throttle - - - - Optional Optional Optional Optional
Lights voltage (V/W) - - - - - - - -
Pedal assist function Optional Optional Optional Optional Optional Optional Optional Optional
Noise (dB) <55 <55 <55 <55 <55 <55 <55 <55
IP Level IPX5 IPX5 IPX5 IPX5 IPX5 IPX5 IPX5 IPX5
Operating Temperature (℃) -20-55 -20-55 -20-55 -20-55 -20-55 -20-55 -20-55 -20-55
