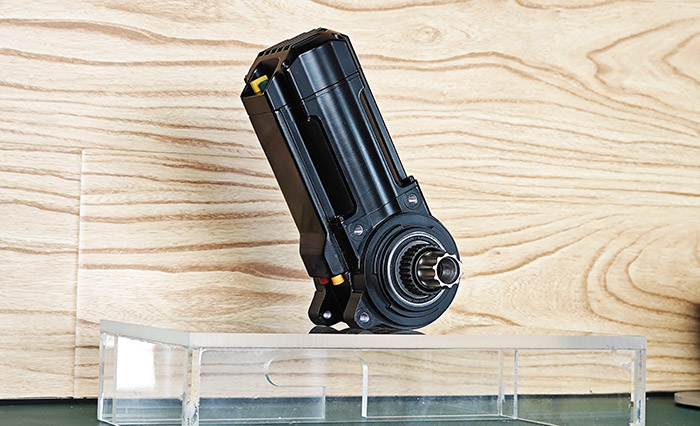

M11-Hidden eBike Motor

The M11 hidden motor stands out as an excellent choice for electric bicycles due to its compact, discreet, and lightweight features. This motor can almost completely hidden itself within the bicycle frame's down tube or seat tube, weighing a mere 1.9 kilograms. It is a good choice for both commuting and road bikes.

Compact and Concealed Compact and Concealed

Quiet and Gentle Quiet and Gentle

Lightweight Lightweight

Designed for riders who appreciate a quiet and sleek appearance

Tiny and Concealed

Tiny and Concealed

Hiding the motor within the bicycle frame, it stays quiet yet offers power support when needed, all while looking just like a traditional bicycle. It's really cool!

Tiny and Concealed

Quiet and Gentle

Quiet and Gentle

Simultaneously, it operates exceptionally quietly, preserving both the traditional appearance of the bicycle and the serenity of the riding experience. Furthermore, the M11 motor provides riders with assistance of up to 60N.m, offering them precisely the right level of support.

Quiet and Gentle

Lightweight

Lightweight

M11 is one of the lightest mid-drive motor of TRUCKRUN and weighing a mere 1.9 kilograms. As a mid-drive motor, it also ensures a balanced distribution of weight across the entire bicycle, guaranteeing stable riding performance.

Lightweight

More Details

More Details

More Details

More Details

More Details

More Details

RoHS

RoHS

EMC

EMC

SGS

SGS

CE

CE

UL-Certificate

UL-Certificate

UL-Test

UL-Test

EN15194

EN15194

CQC-Mid-drive motor

CQC-Mid-drive motor

CCC

CCC

Quality Management System

Quality Management System

Product parameters

  M12 M11 M09 M01 M06 M03 M16 M30
Dimension diagram

Install Location Mid Mid Mid Mid Mid Mid Mid Mid
Size/L*W*H(mm) 192*128*153.5 60*149*135*67.4 233*163*144.5 203*153*135 220*153.5*148 203*153*135 202*126.5*155
Rated Voltage(DCV) 48 36 48-60 36-48 36 36-48 48 60-72
Rated Power(W) 500/750 250 750/1000/1200 250/350/500 250 250/350/500 350/500/750 3000-6000
Rated speed(Rpm) 90-100 100-120 120/135/160 100/100/115 90 100/100/115 110-130 5000-7500
Max Torque(N.m) 120/160 60 150/200/220 100/120/140 95 100/120/140 80-120 30-60
Efficiency(%) ≥80 ≥80 ≥80 ≥80 ≥80 ≥80 ≥80 ≥80
Weight(kg) 3.6/3.9 1.9 5.8/6.0 3.3/3.6/3.8 3.4 3.3/3.6/3.8 3.8
Shaft type ISIS ISIS JIS/ISIS JIS JIS ISIS/JIS ISIS
Noise Grade(dB) <55 <55 <55 <55 <60 <55 <55 <55
Power off brake optional optional optional optional optional optional optional
Handlebar throttle optional optional optional optional optional optional optional
Lights voltage (V/W) 6V3W 6V3W 6V3W 6V3W 6V3W 6V3W 6V3W
Pedal assist function optional optional optional optional optional optional optional
Shift monitoring optional optional optional optional Optional optional optional
IP Level IPX6 IPX6 IPX6 IPX6 IPX6 IPX6 IPX6 IPX6
Operating Temperature (℃) -20~55 -20~55 -20~55 -20~55 -20~55 -20~55 -20~55 -20~55
Stator insulation class Class F
